DC to AC / DC to DC PCB Mount Solid State Relay

pcb_mount_solid_state_relay

Product Specification

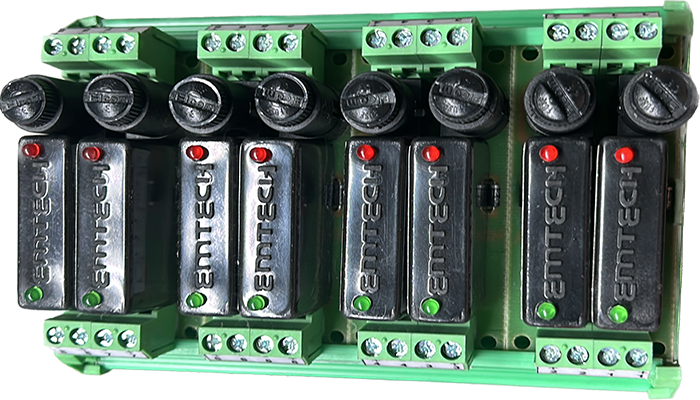

DC to AC / DC to DC PCB MOUNTED SSR WITH / WITHOUT CHANNEL CARD

Salient Features:

  • Compatible to TTL/CMOS logic
  • Zero Voltage / Random turn on
  • Led indication
  • PCB mountable Solid State Relay
  • Opto Isolation 2500VA
  • Industrial standard Package
  • Pins are Polarized
  • Excellent resistance to fire
  • Opto isolation 2500vrms
  • Input LED Indication (Green)
  • Output reversed LED Indication (Red)

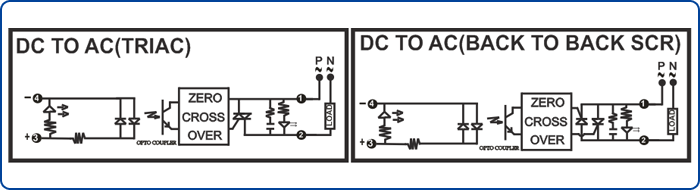

  • DC to AC type S.S.R output Triac
  • DC side MOSFET output for 300micro second ON/OFF Period

Advantages:

  • Contac less Logic Relay with Switching Function Performed by Semiconductor Device.
  • True Zero Voltage turn ON/OFF.
  • Input - Output Isolation 2500VA.
  • Virtually Free Electromagnetic Interference and Radio Frequency Interference.
  • No Moving Contacts So No Acoustic Noise.
  • Dustproof, Immunity to Humidity, No effect of Alkaline / Acidic Atmosphere.
  • High Speed And High Frequency Switching.
  • Shock And Vibration Resistance.
  • Longer Life Due to Infinite Number of Switching.


Precaution:

  • For Load Current More Than 3Amp External Heat sink is Must.
  • Apply Heat sink Pest On the Base Plate of the SSR Before Mounting it on External Heat sink.
  • Fast Acting Fuse Require For Protection Of SSR.
  • SSR Rating Should Be More or Equal to Maximum Jerk Current of Load.
  • For Additional Transient Over Voltage Protection Add MOV.
  • Do Not Check SSR by Meter OR Continuity Tester. Otherwise, It will Always Shows OPEN.

Application

  • Temperature Control System.
  • Microprocessor Based Control.
  • Traffic Signal Controls.
  • Laboratory Equipments.
  • Primary Transformer Control.
  • Photography Process Equipments.
  • Switching of Contactors.
  • Three Phase Motor Control.
  • Process Control Systems.
  • Medical Equipments.
  • Business Machines.
  • ON / OFF of Solenoid Valve.
  • CNC Machine Control.
  • Switching of Contactors.
  • Automatic Vending Machine.
  • Plastic And Packaging Machine.
TYPE OF SSR CURRENT AMP 20° INPUT SIGNAL VOLTAGE INPUT CURRENT mA OUT PUT LOAD VOLTAGE OUT PUT CURRENT AMP NOS OF SSR WITH CARD
EMT 60 03 DC 3AMP 4 - 32VDC 6 - 20mA 60VDC 3AMP 1,2,3,4,5,6,7,8,9,10, 11,12,13,14,15,16 CHANNEL
EMT 10 03 DC 3AMP 4 - 32VDC 6 - 20mA 100VDC 3AMP
EMT 24 03 DC 3AMP 4 - 32VDC 6 - 20mA 240VDC 3AMP 1,2,3,4,5,6,7,8,9,10, 11,12,13,14,15,16 CHANNEL
EMT 48 03 DC 3AMP 4 - 32VDC 6 - 20mA 480VDC 3AMP

Input Specification & Output Specification Technical Data

INPUT SPECIFICATIONS OUT PUT SPECIFICATIONS
INPUT ON INPUT OFF INPUT CURR LOAD CURR LOAD VOLT VTM IDRM TURN ON TURN OFF
4 - 32VDC 1.0VDC 4 - 16m 3AMP 60VDC 1.5VAC 5ma 200ųs  CYCLE 750ųs
100VDC 5ma 200ųs  CYCLE CYCLE
240VAC 1ma   750ųs
480VAC 1ma   CYCLE
