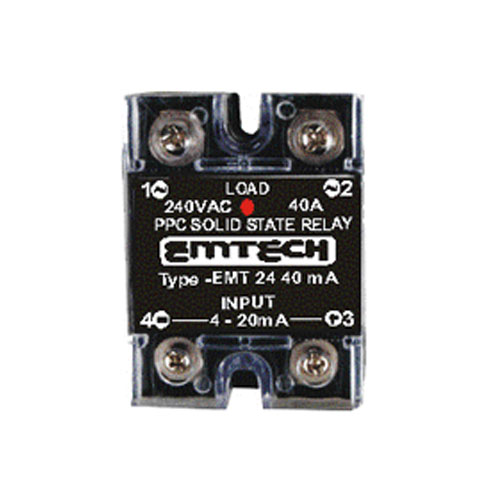

TYPE OF SSR |
OUTPUT | INPUT |
CURRENT AMPWITH HEAT SINK AT 55° C. | FUSING CURRENT I²t |
|
|---|---|---|---|---|---|
| VOLTAGE | CURRENT AMP AT 20°C | ||||
| EMT PPC 44 25 | 230VAC
or
480VAC PIV-1200 - 1600 VPK |
25 AMP | 4 - 20 mA
|

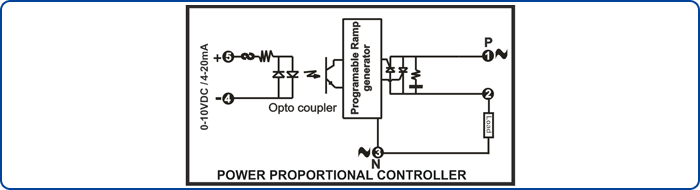

8 AMP | 500A2S |
| EMT PPC 44 40 | 40 AMP | 22 AMP | 1800A2S | ||
| EMT PPC 44 50 | 50 AMP | 28AMP | 3000 A2S | ||
| EMT PPC 44 75 | 75 AMP | 34 AMP | 3500 A2S | ||
| EMT PPC 44 100 | 100 AMP | 65 AMP | 8000 A2S | ||
| EMT PPC 44 125 | 125 AMP | 80AMP | 10000 A2S | ||
| EMT PPC 44 150 | 150 AMP | 100 AMP | 15000 A2S | ||
| EMT PPC 44 200 | 200 AMP | 120 AMP | 25000 A2S | ||
| EMT PPC 44 250 | 250 AMP | 160 AMP | 30000 A2S | ||
| INPUT SPECIFICATION | OUT PUT SPECIFICATION | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| I / P ON | VDRM VpK | IT A | VTM VAC | ITSM bA | IDRM mA | IHO mA | DV/DT V/ms | I2t A2T | ||
| 0-10VDC Or 4-20mA | 1200 VPK | 10 | 1.60 | 100 | 10 | 75 | 200 | 50 | ||
| 16 | 1.60 | 160 | 75 | 200 | 120 | |||||
| 25 | 1.85 | 260 | 150 | 250 | 260 | |||||
| 40 | 1.85 | 350 | 150 | 250 | 610 | |||||
| 50 | 2.00 | 350 | 250 | 1000 | 1250 | |||||
| 75 | 2.00 | 1150 | 250 | 1000 | 5000 | |||||
| 90 | 2.00 | 1150 | 250 | 1000 | 5000 | |||||
| Output circuit - Switching element | BACK TO BACK SCR | |||
| Operational voltage range | Vrms | 24-480VAC | ||
| Peak inverse voltage | Vpk | 1200Vpk | ||
| Rated operational current | IT | 25A | 50A | 75A |
| Frequency range | Hz | 45-65Hz | ||
| Max. off-state leakage current | mA | <5 mArms | ||
| Minimum load current holding current | IHO | 175 mA | 275 mA | 275 mA |
| Rated peak withstand current (t =10 ms) | ITSM | 320A | 800A | 1200A |
| Max. Zero voltage turn on | Vpk | 15 | 15 | 15 |
| Max. load integral i²dt (t = 10 ms) | I²t | 500A²S | 3000A²S | 7200A²S |
| Voltage drop in on-state | VTM | 1.3V | 1.3V | 1.3V |
| Critical current gradient | di/dt | ≥100 A/µs | ≥100 A/µs | ≥150 A/µs |
| Critical voltage gradient | Dv/dt | 350 V/µs | 1500 V/µs | 1500 V/µs |
| Thermal resistance Rth (Junction to case) DC | ØJC | 1.1 | 1.0 | 0.4 |
| Power factor | CosØ | ≥0.5 (at 600VAC) | ||
| Maximum barrier-layer temperature | 125°C | |||
| Input circuit-control circuit /rated control supply volt | 9-32VDC/ | |||
| Make voltage / Break voltage | 9VDC | |||
| Max. current consumption | 22mA | |||
| Switching times max zero cross over make/break | 1period/1period | |||
| Ambient temperature range operation | -30 to +80°C | |||
| Test voltage between all isolated circuits (type test) | 4kVA | |||
